Funduro (Production)

$2,300
$2,300

The Retrotec Funduro is a versatile full-spectrum trail bike, balancing capability with distinctive style. Every frame is hand built by Curtis Inglis in Napa, California, and features modern geometry, components, and tubing.

Production frames are made to order, not in stock. Each frame is built by hand using standardized sizing and options to keep the process simple and accessible. Typical lead time is 12-14 weeks from deposit. For the most current estimates, see the FAQ.

Production frames are ordered with a non-refundable deposit, which secures your place in the build queue and is applied toward the total frame price. After checkout, Curtis will reach out within 48 hours to confirm order details, and specify all remaining options.

Every Retrotec frame is built by hand in Napa, California, with a focus on local production, direct collaboration, and hands-on craftsmanship.

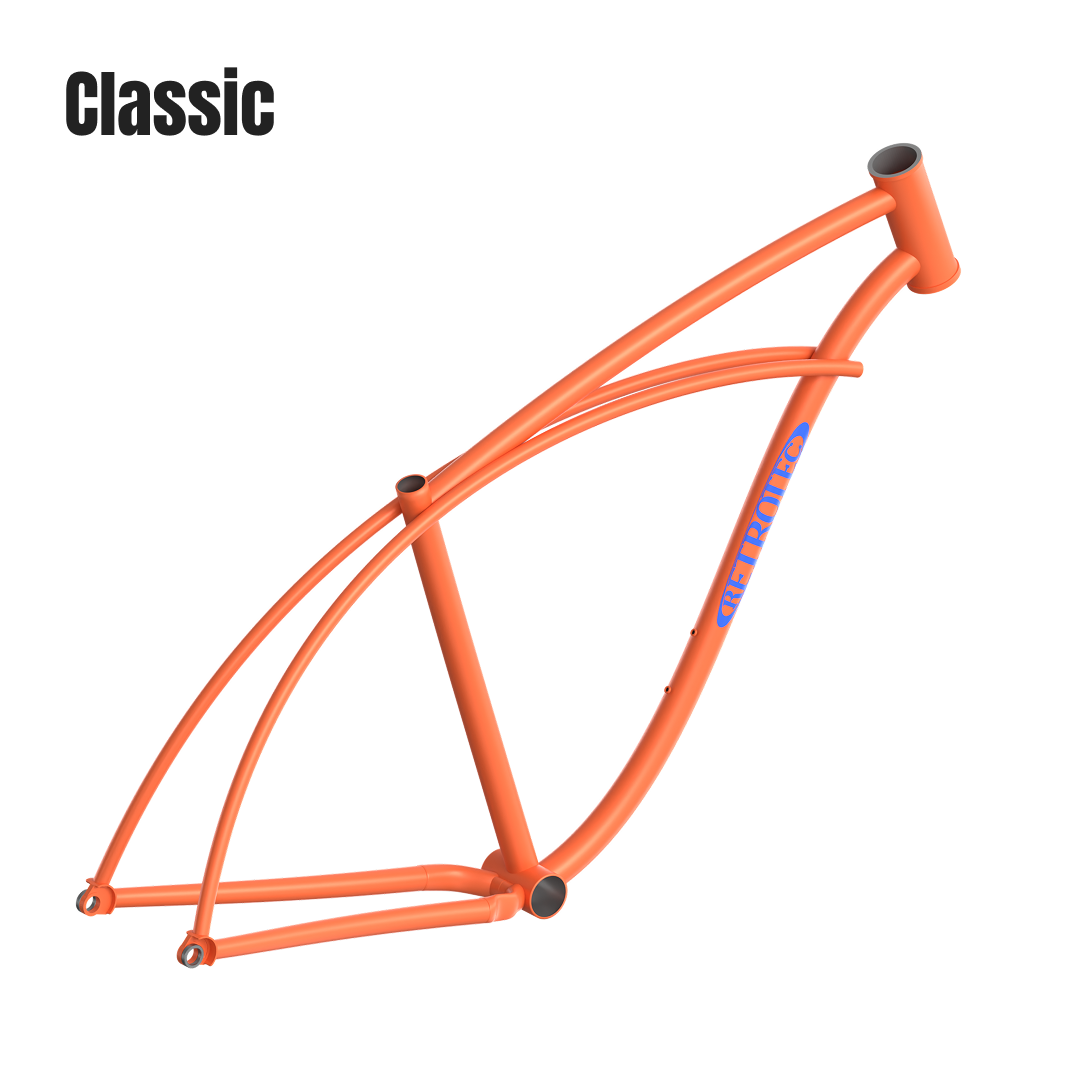

Style:
Classic
Size:
Small
In a nutshell

A fun and versatile full-spectrum trail bike

That's a nice package 😉

Production frame details

Single Color Paint
Stainless Steel 3D Printed Yoke

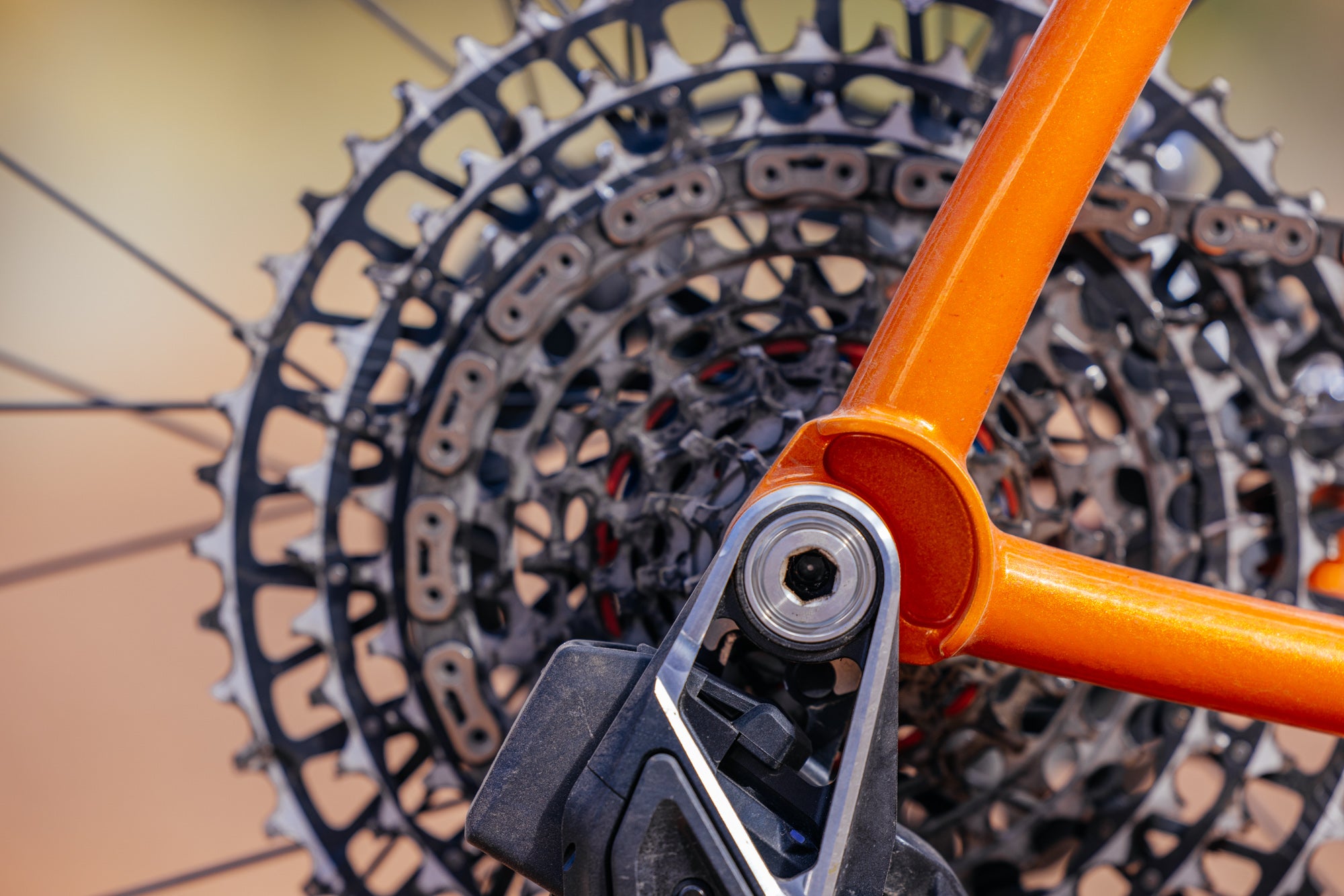

UDH Dropouts
Short introduction

Tech and spec

  • Frame material: Double-butted and 4130
  • 148x12mm BOOST Spacing, UDH Dropout
  • ISO rear brake mount
  • Designed for 29” x 2.6” tires
  • 30.9mm Seat post (stealth routing)
  • 2 bottle cages in front triangle
  • 130mm travel size small 140 all other sizes
  • 73mm BSA Bottom bracket Shell
  • 44mm Headset
  • Clearance for up to a 32T chainring (boost chainline)
  • Full external cable routing
Standard sizes

Geometry details

Head tube angle Head tube Seat tube angle Chainstay length Effective top tube Reach Stack Seat tube BB Drop Standover height Fork travel Front center BB Height
Size SM M L XL
Rider Height 5'7" – 5'10" 5'10" – 6'1" 6'0" – 6'3" 6'2" – 6'5"
Stack 626 650 661 674
Reach 425 450 475 495
Effective Top Tube 593 634 669 699
Seat Tube Length 405 430 455 475
Head Tube Length 90 100 115 130
Head Tube Angle 65° 65.5° 65.5° 65.5°
Seat Tube Angle 75° 74.5° 74° 73.5°
Chainstay Length 440 443 446 446
Front center 737 769 800 827
BB Drop 68 64 59 59
BB Height 307 311 316 316
Standover Height 802 831 851 880
Fork Travel 120 140 140 140
Wheel Size 29" 29" 29" 29"

Frequently asked questions

For years we built production sized mountain and road bikes but when custom orders really took off, we stopped offering them. Fast forward to present, and we wanted to offer them again to help customers get out on the trails a little faster.

Need more information? Head over to our FAQ page!

Learn more

Need more options? Shop custom.

If you're looking for a more personalized custom-frame experience - check out the custom bike options.

Shop custom
