Hella Gravel (Production)
- Regular price
- $2,300
- Sale price
- $2,300
- Regular price
-

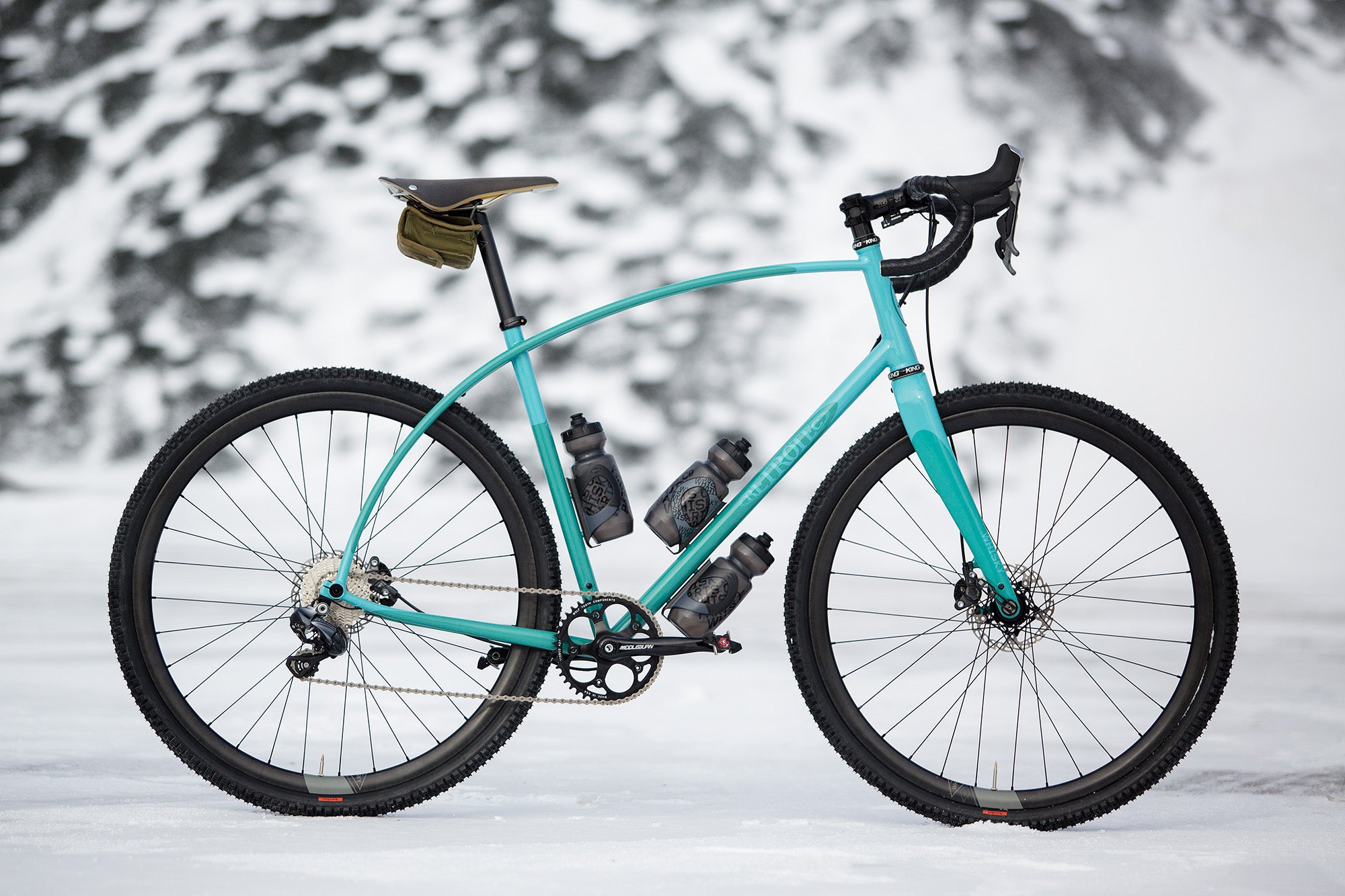

The Retrotec Gravel frame is designed for mixed-surface riding, long days, and varied terrain, balancing modern capability with distinctive style. Every frame is hand built by Curtis Inglis in Napa, California, using modern geometry, components, and tubing.
Production frames are made to order, not in stock. Each frame is built by hand using standardized sizing and options to keep the process simple and accessible. Typical lead time is 12-14 weeks from deposit. For the most current estimates, see the FAQ.
Production frames are ordered with a non-refundable deposit, which secures your place in the build queue and is applied toward the total frame price. After checkout, Curtis will reach out within 48 hours to confirm order details and finalize remaining options.
Every Retrotec frame is built by hand in Napa, California, with a focus on local production, direct collaboration, and hands-on craftsmanship.
Anything-but-standard gravel grinder
Production frame details
Tech and spec
- Frame material: Double-butted and 4130
- 142X12 Spacing, UDH Dropout
- Flat mountrear brake mount
- Designed for 700X2.2 tires
- 27.2mm Seat post
- 2 bottle cages in front triangle
- Built around Enve adventure fork
- 68mm BSA Bottom bracket Shell
- 34-44mm Headset
- Clearance for up to a 46T chainring
- Full external cable routing
Geometry details
| Size | SM | M | M/L | L | XL |
|---|---|---|---|---|---|
| Rider Height | 5'2 – 5'5" | 5'5" – 5'8" | 5'8" – 5'11" | 5'11" – 6'2" | 6'2" – 6'5" |
| Stack | 542 | 569 | 599 | 625 | 654 |
| Reach | 350 | 365 | 380 | 395 | 415 |
| Effective Top Tube | 498 | 531 | 554 | 587 | 616 |
| Seat Tube Length | 440 | 460 | 490 | 520 | 550 |
| Head Tube Length | 100 | 130 | 160 | 190 | 220 |
| Head Tube Angle | 69° | 69.5° | 70° | 71° | 71° |
| Seat Tube Angle | 75° | 74° | 74° | 73.5° | 73.5° |
| Chainstay Length | 445 | 440 | 438 | 435 | 435 |
| frontcenter | 592 | 613 | 634 | 641 | 670 |
| BB Drop | 80 | 77 | 77 | 75 | 75 |
| Trail | 77 | 76 | 70 | 70 | 70 |
| Standover Height | 753 | 778 | 810 | 850 | 881 |
| Axle to crown | 406 | 406 | 406 | 398 | 398 |
| Fork offset | 55.5 | 55.5 | 55.5 | 49 | 49 |
Frequently asked questions
For years we built production sized mountain and road bikes but when custom orders really took off, we stopped offering them. Fast forward to present, and we wanted to offer them again to help customers get out on the trails a little faster.
